E911 10AMP BATTERY CHARGER 12V - 24V

(13V Turn On)

Specification:

• PART NO: E911
• TYPE: SWITCH MODE STEP UP BATTERY CHARGER
• CHARGING CURRENT: 10 AMP
• INPUT VOLTAGE: 11 – 15V DC
• OUTPUT VOLTAGE: 28V DC
• OVERLOAD PROTECTION: EXTERNAL FUSE
• POLARITY PROTECTED: EXTERNAL FUSE
• HIGH TEMP PROTECTED: YES
• SHORT CIRCUIT PROTECTION: EXTERNAL FUSE
• EFFICIENCY: > 85%
• DIMENSIONS: 155mm X 70mm X 53mm
• FIXING CENTRES: 138mm X 40mm (4 HOLE FIXING)
• HOLE SIZE: 4.5mm
• WEIGHT: 447g
• CONSTRUCTION: ANODISED COOLING PROFILE

For O.E.M. Customers, Leads can be terminated to suit your requirements

This Converter has been designed using a building block system to obtain the power needed

to suit your requirements

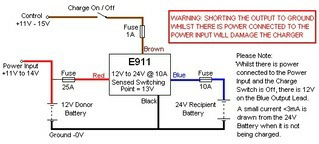

The Battery Charger can be wired in 2 ways:

• Wired as a fully automatic Charger
• Wired as a manually operated Charger
