E790 45AMP BATTERY CHARGER 24V - 12V

Specification:

• PART NO: E790
• TYPE: SWITCH MODE STEP DOWN BATTERY CHARGER
• CHARGING CURRENT: 45 AMP
• INPUT VOLTAGE: 18 to 30V DC
• OUTPUT VOLTAGE: 14V DC
• OVERLOAD PROTECTION: YES
• POLARITY PROTECTED: EXTERNAL FUSE
• HIGH TEMP PROTECTED: YES
• SHORT CIRCUIT PROTECTION: YES
• EFFICIENCY: > 90%
• DIMENSIONS: 320mm X 195mm X 55mm
• FIXING CENTRES: 300mm X 175mm (4 HOLE FIXING)
• HOLE SIZE: 6mm
• WEIGHT: 2495g
• CONSTRUCTION: 3 X E770-MOD3 15A CHARGER MOUNTED  ON A SINGLE ALUMINIUM PLATE

This Charger has been designed using a building block system to obtain the power needed

to suit your requirements

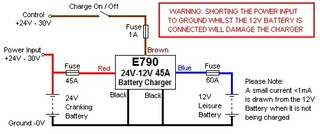

The Battery Charger can be wired in 3 ways:

• Wired as a fully automatic Charger
• Wired to only operate when the engine is running
• Wired as a manually operated Charger
