E770 15AMP BATTERY CHARGER 24V - 12V

Specification:

• PART NO: E770-MOD3
• TYPE: SWITCH MODE STEP DOWN BATTERY CHARGER
• CHARGING CURRENT: 15 AMP
• INPUT VOLTAGE: 18 TO 30V DC
• OUTPUT VOLTAGE: 14V DC
• OVERLOAD PROTECTION: YES
• POLARITY PROTECTED: EXTERNAL FUSE
• HIGH TEMP PROTECTED: YES
• SHORT CIRCUIT PROTECTION: YES
• EFFICIENCY: > 90%
• DIMENSIONS: 155mm X 70mm X 53mm
• FIXING CENTRES: 138mm X 40mm (4 HOLE FIXING)
• HOLE SIZE: 4.5mm
• WEIGHT: 447g
• CONSTRUCTION: ANODISED COOLING PROFILE

For O.E.M. Customers, Leads can be terminated to suit your requirements

This Charger has been designed using a building block system to obtain the power needed

to suit your requirements

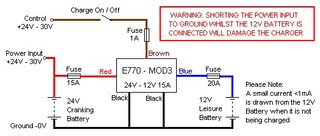

The Battery Charger can be wired in 3 ways:

• Wired as a fully automatic Charger
• Wired to only operate when the engine is running
• Wired as a manually operated Charger
