E1425 10AMP BATTERY CHARGER 72V - 12V

Specification:

• PART NO: E1425
• TYPE: SWITCH MODE STEP DOWN BATTERY CHARGER
• RATING: 10 AMPS
• MAX CONTINUOUS O/P CURRENT: 10 AMPS
• PEAK OUTPUT CURRENT: > 10.5 AMPS
• INPUT VOLTAGE: 60V – 90V  DC
• OUTPUT VOLTAGE: 14.05V DC
• OVERLOAD PROTECTION: YES
• OUTPUT PROTECTED: YES
• POLARITY PROTECTED: EXTERNAL FUSE
• OPERATING TEMP: - 40 DEG.C TO + 70 DEG.C
• HIGH TEMP PROTECTED: YES
• SHORT CIRCUIT PROTECTION: YES
• OVER VOLTAGE PROTECTION: YES
• EFFICIENCY: > 90%
• DIMENSIONS: 155mm X 70mm X 53mm
• FIXING CENTRES: 138mm X 40mm (4 HOLE FIXING)
• HOLE SIZE: 4.5mm
• WEIGHT: 447g
• CONSTRUCTION: ANODISED COOLING PROFILE

For O.E.M. Customers, Leads can be terminated to suit your requirements

This Charger has been designed using a building block system to obtain the power needed

to suit your requirements

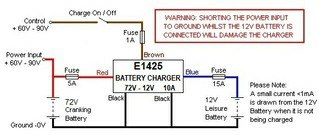

The Battery Charger can be wired in 3 ways:

• Wired as a fully automatic Charger
• Wired to only operate when the engine is running
• Wired as a manually operated Charger
