E1348 30AMP BATTERY CHARGER 48V - 12V

(46V Turn On)

Specification:

• PART NO: E1348
• TYPE: SWITCH MODE STEP DOWN BATTERY CHARGER
• CHARGING CURRENT: 30 AMP
• PEAK OUTPUT CURRENT (Vin = 48V): > 54A
• INPUT VOLTAGE: 24V to 60V
• OUTPUT VOLTAGE (Vin = 48V, I out = 0.2A):

     14.05 VDC  ± 0.05 V

• CONTROL INPUT VOLTAGE RANGE: 0V to 60V
• CONTROL INPUT VOLTAGE (CVIN) :

     CHARGER ENABLED > 46V

     CHARGER DISABLED < 40V

• OVERLOAD PROTECTION: YES
• POLARITY PROTECTED: EXTERNAL FUSE
• HIGH TEMP PROTECTED: YES
• SHORT CIRCUIT PROTECTION: YES
• EFFICIENCY: 90%
• DIMENSIONS:  330mm X 230mm X 60mm
• HOLE SIZE: 6mm
• WEIGHT: 2312g
• CONSTRUCTION: 3 X E1079 10A CHARGER MOUNTED ON A SINGLE ALUMINIUM PLATE

This Charger has been designed using a building block system to obtain the power needed

to suit your requirements

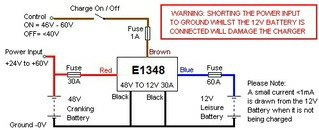

The Battery Charger can be wired in 3 ways:

• Wired as a fully automatic Charger
• Wired to only operate when the engine is running
• Wired as a manually operated Charger
