E1436 10AMP BATTERY CHARGER 72V - 24V

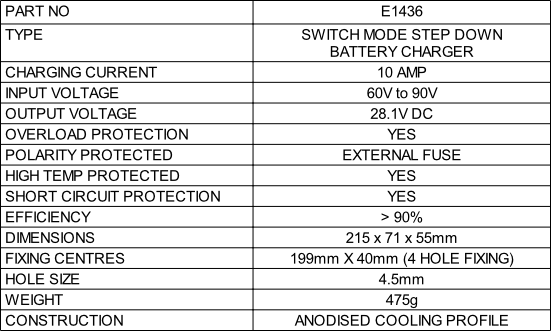

Specification


This Battery Charger allows you to charge a 24V Battery from a 72V Battery System.

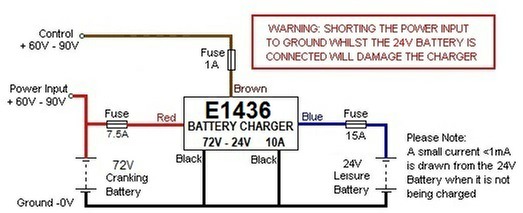

The Battery Charger can be wired in 3 ways:-


Wired as a fully automatic Charger

(continuous running)

The Brown Control Wire is wired directly to the +ve Connection of the 72V Cranking (Donor) Battery to run the Charger all the time.

The Unit automatically controls the maximum charge into the 24V Leisure (Recipient) Battery preventing it from becoming over-charged / damaged.



Wired to only operate when the

engine is running

The Brown Control Wire is wired to any +ve connection which becomes live when the Ignition is switched on.

The Unit automatically controls the maximum charge into the 24V Leisure (Recipient) Battery preventing it from becoming over-charged / damaged.


Wired as a manually operated Charger

The Brown Control Wire is wired via a Switch to the +ve Connection of the 72V Cranking (Donor) Battery to switch the Charger on and off manually.

In this case the Operator can control when the Battery Charger is switched on or off.

If left on, the Unit will automatically control the maximum charge into the 24V Leisure (Recipient) Battery preventing it from becoming over-charged / damaged.


For O.E.M. Customers, Leads can be terminated to suit your requirements


This Battery Charger has been designed

using a building block system

to obtain the power needed

to suit your requirements.


Also available in the Range:





Please contact us if you require a higher current rating than those shown
