E932 15A 24v-12v Battery Charger 26v turn on

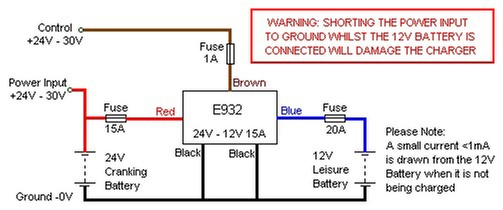

Wired as a fully automatic Battery Charger

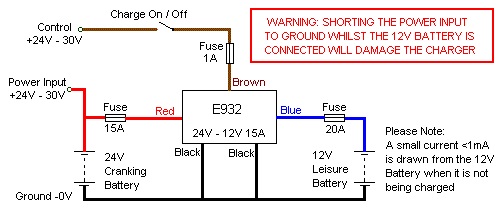

Wired as a manually operated Battery Charger


E932 15AMP BATTERY CHARGER 24V - 12V (26V Turn On)


Specification


This Battery Charger starts when the input voltage reaches approximately 26.5V and stops when the voltage reaches 25V.


The Battery Charger can be wired in 2 ways:


Wired as a fully automatic Charger

The Brown Control Wire is wired directly to the +ve Connection of the Cranking (Donor) Battery to switch the Charger on and off automatically.

In this case the Control Wire senses the Cranking (Donor) Battery Voltage and switches the Charger on only when the Cranking (Donor) Battery is being charged.

The Unit automatically controls the maximum charge into the Leisure (Recipient) Battery preventing it from becoming over-charged / damaged and prevents the Cranking Battery (Donor Battery) from becoming flat / exhausted.

Wired as a manually operated Charger

The Brown Control Wire is wired via a Switch to the +ve Connection of the Cranking (Donor) Battery to switch the Charger on and off manually. In this case the Operator can control when the Battery Charger is switched on or off.


If left on, the Unit will automatically control the maximum charge into the Leisure (Recipient) Battery preventing it from becoming over-charged / damaged and prevent the Cranking Battery (Donor Battery) from becoming flat / exhausted.


For O.E.M. Customers, Leads can be terminated to suit your requirements


This Battery Charger has been designed

using a building block system

to obtain the power needed

to suit your requirements.


Also available in the Range:








Please contact us if you require a higher current rating than those shown
