E930 12AMP BATTERY CHARGER 24V -

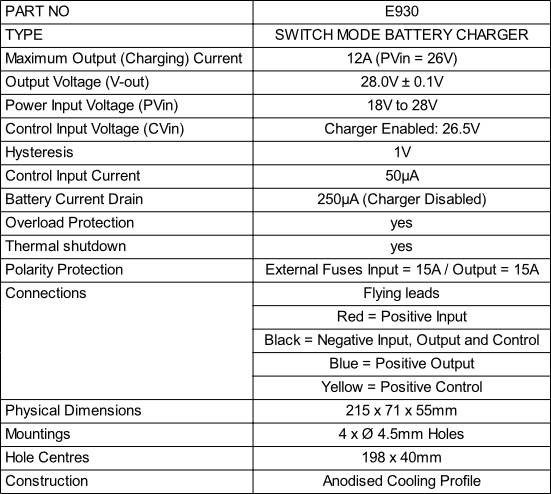

Specification
The Charger starts when the voltage
reaches approximately 26V.
The Battery Charger can be wired in 2 ways:-
Wired as a fully automatic Charger
The Yellow Control Wire is wired directly to the +ve Connection of the 24V Cranking (Donor) Battery to switch the Charger on and off automatically. In this case the Control Wire senses the 24V Cranking (Donor) Battery Voltage and switches the Charger on only when the 24V Cranking (Donor) Battery is being charged.
The Unit automatically controls the maximum charge into the 24V Leisure (Recipient) Battery preventing it from becoming over-
Wired as a manually operated Charger
The Yellow Control Wire is wired via a Switch to the +ve Connection of the 24V Cranking (Donor) Battery to switch the Charger on and off manually.
In this case the Operator can control when the Battery Charger is switched on or off.
If left on, the Unit will automatically control the maximum charge into the 24V Leisure (Recipient) Battery preventing it from becoming over-
For O.E.M. Customers, Leads can be terminated to suit your requirements
This Battery Charger has been designed
using a building block system
to obtain the power needed
to suit your requirements
This Unit can be provided with
a Charging Indicator.
To request a Charging Indicator,
please add an "L" to the
Part Number, i.e.: E930-
Also available from this range:
24A 24V -
36A 24V -
48A 24V -
60A 24V -
72A 24V -
Please contact us if you require a higher current rating than those shown
