Wired as a fully automatic Battery Charger Wired as a manually operated Battery Charger
E928 24A 24v-24v Battery Charger (24V Turn On)

E928 24AMP BATTERY CHARGER 24V - 24V (24v Turn On)


Specification


The Charger starts when the voltage

reaches approximately 24V.


This Unit = 2 X E899 12A Battery Chargers wired in parallel to form a single 24A module


The Battery Charger can be wired in 3 ways:-

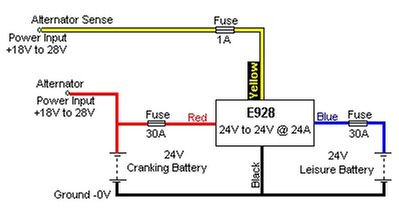

Wired as a fully automatic Charger

The Yellow Control Wire Connection is wired directly to the +ve Connection of the 24V Cranking (Donor) Battery to switch the Charger on and off automatically.

In this case the Control Wire Connection senses the 24V Cranking (Donor) Battery Voltage and switches the Charger on only when the 24V Cranking (Donor) Battery is being charged.

The Unit automatically controls the maximum charge into the 24V Leisure (Recipient) Battery preventing it from becoming over-charged / damaged and prevents the 24V Cranking Battery (Donor Battery) from becoming flat / exhausted.


Wired to only operate when the

engine is running

The Yellow Control Wire connection is wired to any +ve connection which becomes live when the Ignition is switched on. The Unit automatically controls the maximum charge into the 24V Leisure (Recipient) Battery preventing it from becoming over-charged / damaged.


Wired as a manually operated Charger

The Yellow Control Wire Connection is wired via a Switch to the +ve Connection of the 24V Cranking (Donor) Battery to switch the Charger on and off manually.

In this case the Operator can control when the Battery Charger is switched on or off.


If left on, the Unit will automatically control the maximum charge into the 24V Leisure (Recipient) Battery preventing it from becoming over-charged / damaged and prevent the 24V Cranking Battery (Donor Battery) from becoming flat / exhausted.



This Unit can be provided with

a Charging Indicator.


To request a Charging Indicator,

please add an "L" to the

Part Number, i.e.: E928-L



Also available from this range:


12A  24V - 24V Battery Charger - Part No. E899


36A  24V - 24V Battery Charger - ask for details


48A  24V - 24V Battery Charger - ask for details


60A  24V - 24V Battery Charger - ask for details


72A  24V - 24V Battery Charger - ask for details


Please contact us if you require a higher current rating than those shown
