E790 45A 24v-12v Battery Charger

Wired as a fully automatic Battery Charger

Wired as a manually operated Battery Charger


E790 45AMP BATTERY CHARGER 24V - 12V

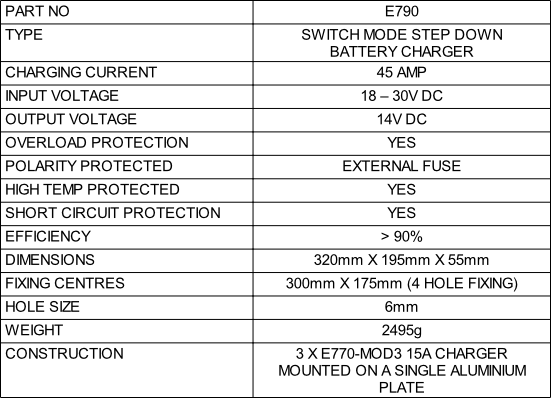

Specification

This 45A Battery Charger =

3 X E770 15A Battery Chargers wired in parallel

to form a single 45A module


The Battery Charger can be wired in 3 ways:-


Wired as a fully automatic Charger

(continuous running)

The Brown Control Wire connection is wired directly to the +ve Connection of the 24V Cranking (Donor) Battery to run the Charger all the time.

The Unit automatically controls the maximum charge into the 12V Leisure (Recipient) Battery preventing it from becoming over-charged / damaged.



Wired to only operate when the

engine is running

The Brown Control Wire connection is wired to any +ve connection which becomes live when the Ignition is switched on.

The Unit automatically controls the maximum charge into the 12V Leisure (Recipient) Battery preventing it from becoming over-charged / damaged.


Wired as a manually operated Charger

The Brown Control Wire connection is wired via a Switch to the +ve Connection of the 24V Cranking (Donor) Battery to switch the Charger on and off manually.

In this case the Operator can control when the Battery Charger is switched on or off.

If left on, the Unit will automatically control the maximum charge into the 12V Leisure (Recipient) Battery preventing it from becoming over-charged / damaged.



This Battery Charger has been designed

using a building block system

to obtain the power needed

to suit your requirements


Also available in the Range:








Please contact us if you require a higher current rating than those shown
