E1243 24AMP SPLIT CHARGER 12V - 12V (12.5V Turn On)

Specification

This Unit = 2 X E1242 12A Split Chargers

wired in parallel to form a single 24A module

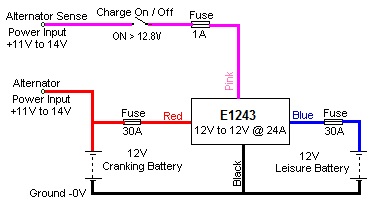

This Unit has a Pink Control Wire Connection which is wired directly to the +ve Connection of the 12V Cranking (Donor) Battery. The Pink Control Wire Connection senses the 12V Cranking (Donor) Battery Voltage and switches the Split Charger on only when the 12V Cranking (Donor) Battery is being charged.

Unlike Relay or Diode Split Chargers this Unit automatically controls the maximum charge into the 12V Leisure (Recipient) Battery preventing it from becoming over-charged / damaged and prevents the 12V Cranking Battery (Donor Battery) from becoming flat / exhausted.

Also available from this range:

12A  12V - 12V Split Charger - Part No. E1242

36A  12V - 12V Split Charger - ask for details

48A  12V - 12V Split Charger - ask for details

60A  12V - 12V Split Charger - ask for details

72A  12V - 12V Split Charger - ask for details

 Please contact us if you require a higher current rating than those shown
