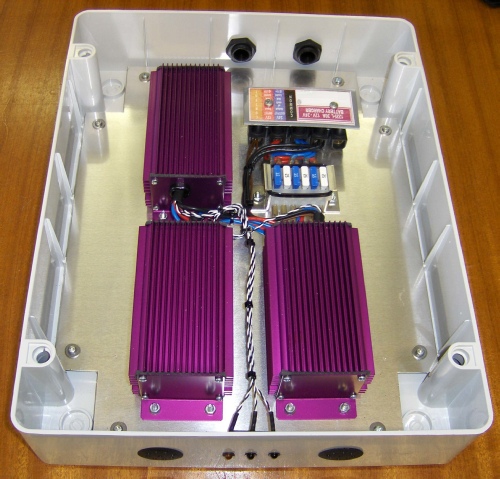

The photograph above left shows the E1225 mounted in an Enclosure to our Customer’s bespoke requirements.

The Unit is fitted with LEDs to indicate charging.

E1225 30AMP BATTERY CHARGER 12V - 24V (13V Turn On)

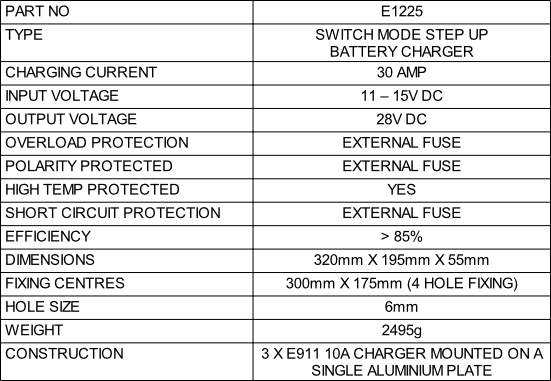

Specification

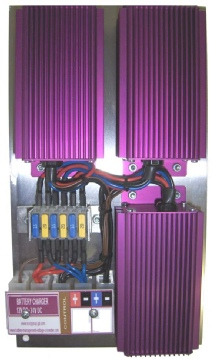

This 30A Battery Charger =

3 X 10A E911 Battery Chargers

wired in parallel to form a single 30A module

The Charger starts when the voltage

reaches approximately 13V.

This Battery Charger allows you to charge a 24V Battery from a 12V Battery System.

The Battery Charger can be wired in 2 ways:

Wired as a fully automatic Charger

The Brown Control Wire Connection is wired directly to the +ve Connection of the 12V Cranking (Donor) Battery to switch the Charger on and off automatically. In this case the Control Wire Connection senses the 12V Cranking (Donor) Battery Voltage and switches the Charger on only when the 12V Cranking (Donor) Battery is being charged.

The Unit automatically controls the maximum charge into the 24V Leisure (Recipient) Battery preventing it from becoming over-charged / damaged and prevents the 12V Cranking Battery (Donor Battery) from becoming flat / exhausted.

Wired as a manually operated Charger

The Brown Control Wire Connection is wired via a Switch to the +ve Connection of the 12V Cranking (Donor) Battery to switch the Charger on and off manually. In this case the Operator can control when the Battery Charger is switched on or off.

If left on, the Unit will automatically control the maximum charge into the 24V Leisure (Recipient) Battery preventing it from becoming over-charged / damaged and prevent the 12V Cranking Battery (Donor Battery) from becoming flat / exhausted.

This Battery Charger has been designed

using a building block system

to obtain the power needed

to suit your requirements.

Also available in the Range:

• 12V - 24V     10AMP Battery Charger 13V Turn On (Part No. E911)

• 12V - 24V     20AMP Twin Battery Charger 13V Turn On (Part No. E912)

• 12V - 24V     40AMP Battery Charger : 13V Turn On (Part No. E1246)

• 12V - 24V     50AMP Battery Charger 13V Turn On....... Ask for details

• 12V - 24V     60AMP Battery Charger 13V Turn On (Part No. E1207)

• 12V - 24V     70AMP Battery Charger 13V Turn On....... Ask for details

• 12V - 24V     80AMP Battery Charger : 13V Turn On…….Ask for details

Please contact us if you require a higher current rating than those shown
