E1154 10AMP 12V - 24V SPLIT CHARGER (13V Turn On)

Specification

This Split Charger starts when the voltage

reaches approximately 13V.

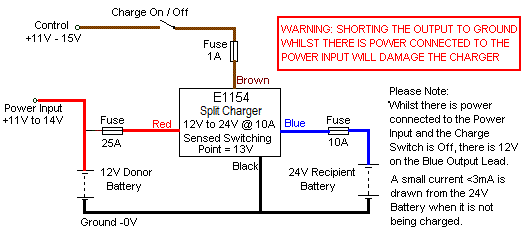

This Unit has a Brown Control Wire which is wired directly to the +ve Connection of the 12V Cranking (Donor) Battery. The Brown Control Wire senses the 12V Cranking (Donor) Battery Voltage and switches the Split Charger on only when the 12V Cranking (Donor) Battery is being charged.

Unlike Relay or Diode Split Chargers this Unit automatically controls the maximum charge into the 24V Leisure (Recipient) Battery preventing it from becoming over-charged / damaged and prevents the 12V Cranking Battery (Donor Battery) from becoming flat / exhausted

For O.E.M. Customers, Leads can be terminated to suit your requirements

This Battery Charger has been designed

using a building block system

to obtain the power needed

to suit your requirements

Also available from this range:

20A  12V - 24V Split Charger (see E1155)

30A  12V - 24V Split Charger - ask for details

40A  12V - 24V Split Charger - ask for details

50A  12V - 24V Split Charger - ask for details

60A  12V - 24V Split Charger - ask for details

Please contact us if you require a higher current rating than those shown
