E1062 12A 12V-12V Battery Charger (12.5V Turn On)

E1062 12AMP BATTERY CHARGER 12V - 12V (12.5v Turn On)

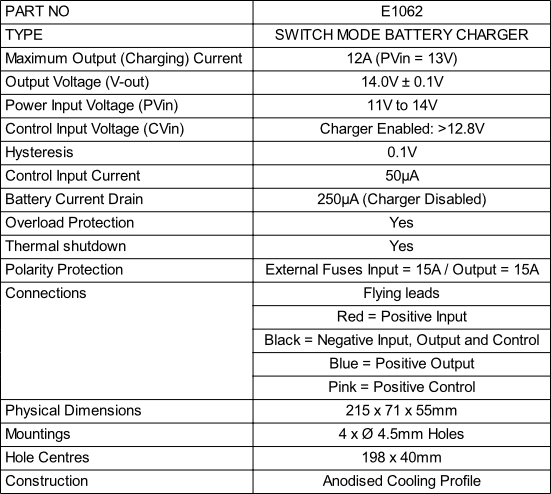

Specification


The Charger starts when the voltage

reaches approximately 12.5V.


The Battery Charger can be wired in 2 ways:-


Wired as a fully automatic Charger

The Pink Control Wire is wired directly to the +ve Connection of the 12V Cranking (Donor) Battery to switch the Charger on and off automatically. In this case the Control Wire senses the 12V Cranking (Donor) Battery Voltage and switches the Charger on only when the 12V Cranking (Donor) Battery is being charged.

The Unit automatically controls the maximum charge into the 12V Leisure (Recipient) Battery preventing it from becoming over-charged / damaged and prevents the 12V Cranking Battery (Donor Battery) from becoming flat / exhausted.

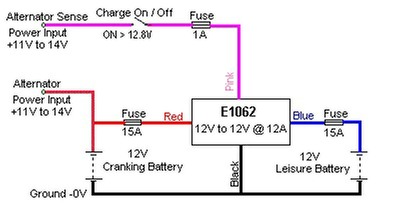

Wired as a manually operated Charger

The Pink Control Wire is wired via a Switch to the +ve Connection of the 12V Cranking (Donor) Battery to switch the Charger on and off manually.

In this case the Operator can control when the Battery Charger is switched on or off.


If left on, the Unit will automatically control the maximum charge into the 12V Leisure (Recipient) Battery preventing it from becoming over-charged / damaged and prevent the 12V Cranking Battery (Donor Battery) from becoming flat / exhausted.



For O.E.M. Customers, Leads can be terminated to suit your requirements


This Battery Charger has been designed

using a building block system

to obtain the power needed

to suit your requirements


This Unit can be provided with

a Charging Indicator.


To request a Charging Indicator,

please add an "L" to the

Part Number, i.e.: E1062-L


Also available from this range:


24A  12V - 12V Battery Charger - Part No E1138


36A  12V - 12V Battery Charger - ask for details


48A  12V - 12V Battery Charger - ask for details


60A  12V - 12V Battery Charger - ask for details


72A  12V - 12V Battery Charger - ask for details


Please contact us if you require a higher current rating than those shown
